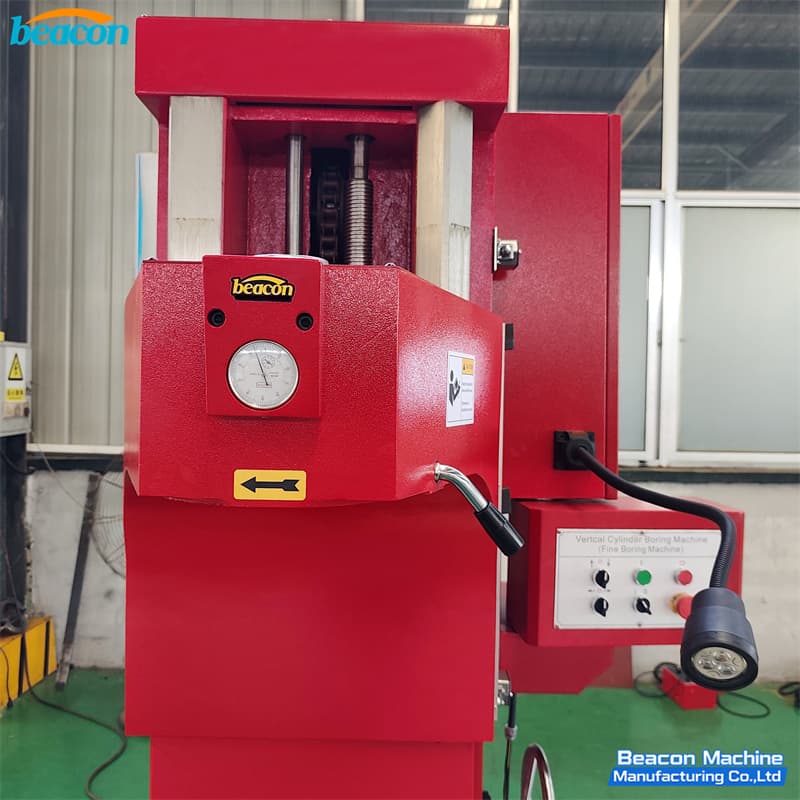

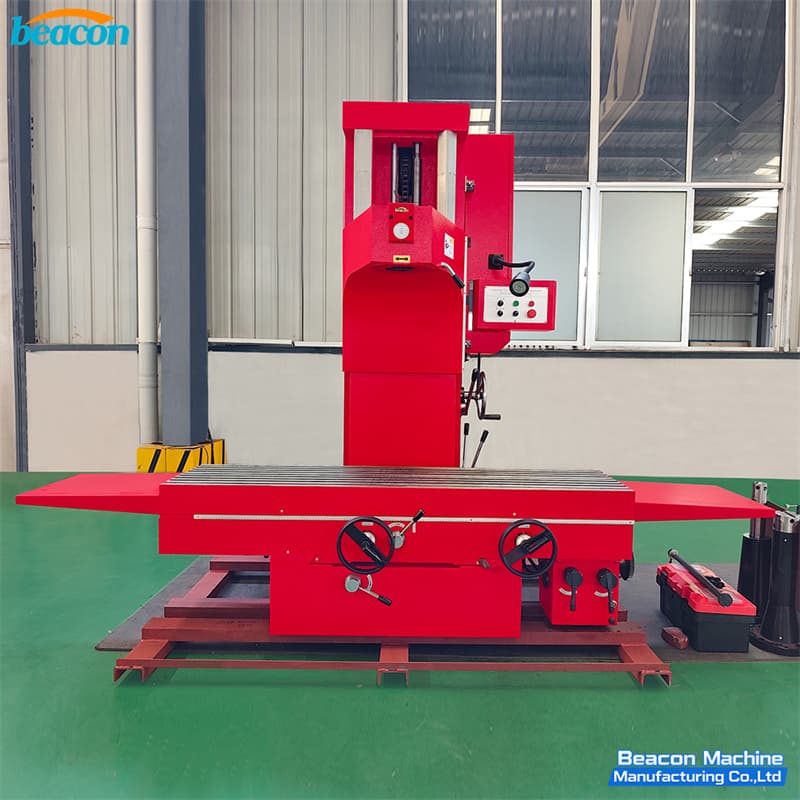

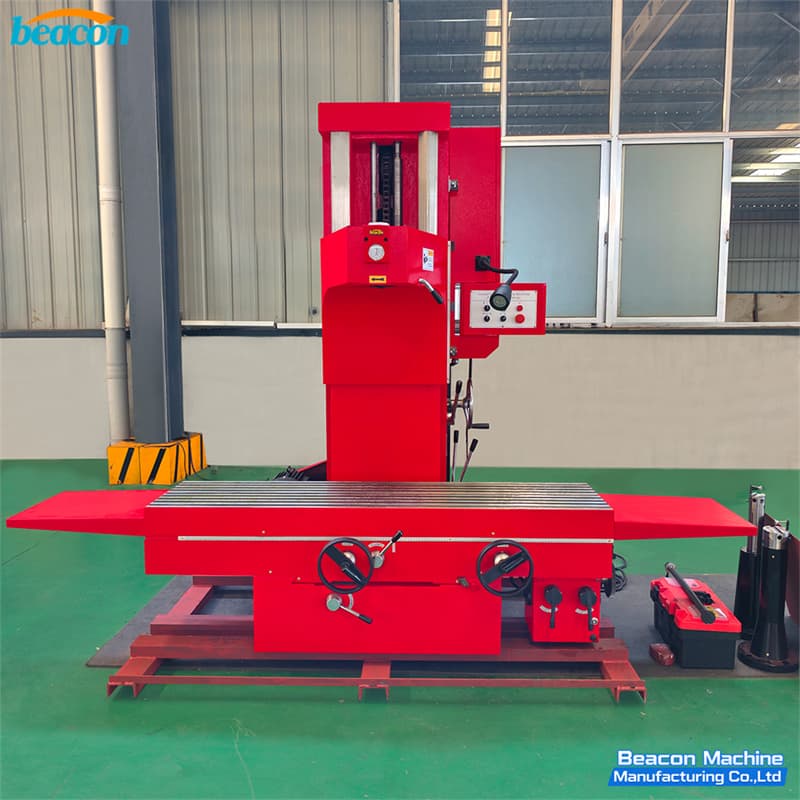

T8018D is a vertical boring solution developed for reconditioning worn engine cylinders in passenger cars, trucks and agricultural engines.
This cylinder boring machine adopts a heavy-duty column structure and fine feed control to achieve smooth and uniform cutting results.
As a reliable precision engine boring machine, it ensures excellent cylindricity and surface quality after boring operations.
Its simple mechanical layout and durable components make it an efficient engine rebore machine for small and medium engine rebuilding facilities.









| Item | Specification |
|---|---|
| Machine type | Vertical engine cylinder boring machine |
| Boring diameter range | 35-200 mm |
| Max boring depth | 420 mm |
| Spindle speed range | 120-1400 rpm |
| Automatic feed range | 0.03-0.18 mm/rev |
| Column travel | 380 mm |
| Worktable travel (X/Y) | 260 mm / 280 mm |
| Main motor power | 3.5 kW |
| Coolant system power | 0.12 kW |
| Power supply | 380V / 50Hz |
| Boring bar diameter | 25 mm |
| Machining accuracy | 0.01 mm |
| Net weight | 1350 kg |
| Overall size | 1650*950*2300 mm |
